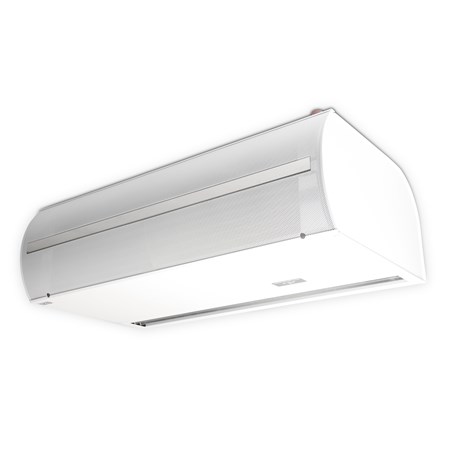

Grand

Air treatment

The Grand is an extraordinary high-performance and visually attractive comfortable air curtain for use in representative premises, such as banks, luxury shops, shopping centres, airports and administrative buildings with a recommended installation height up to 5 m. The air curtain shall be installed indoor in a dry area with ambient temperatures ranging from 0 °C up to +35 °C and relative humidity of up to 80 %. It is designed for conveying air free of rough dust, grease, chemical fumes, and other impurities. IP rating of the air curtain is IP 20. The air curtain project shall always be developed by the HVAC designer.
  • Lengths: 1; 1.5; 2 and 2.5 m

  • Air flow up to 5090 m3/h (ISO 27 327-1)

  • Very low noise level

  • FACE 2 in 1 – suction grille + flter = 2 in 1

  • Universal interface for control module connection (BA, CO, SU)

  • Easy installation and service

  • Wireless control option

  • Standard colour RAL 9010 (any RAL – based colours may be provided on customer’s request

  • Air curtains with electric heater are ftted with automatic heat thermostat and emergency thermostat with manual reset. The warm-water exchangers are designed for the maximum oper ating water temperature of +100 °C and maximum operating pressure of 1.6 MPa
