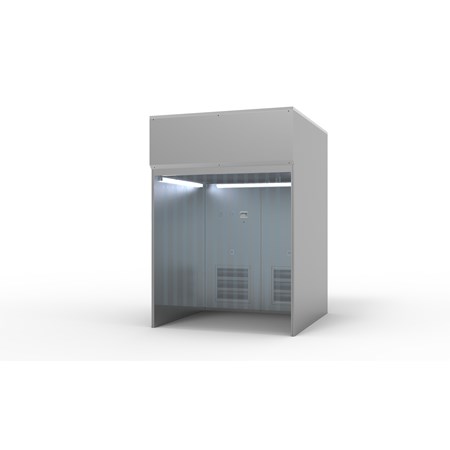

Weighing booths

The fans direct air to the HEPA absolute filters. In a vertical laminar flow the air enters the workspace. Part of the filtered air quantity is exhausted into the room through the front grille.

  • Housing made out of satin stainless steel AISI 304/316L
  • Vertical laminar air flow
  • Air flow velocity: 0.25-0.45 m/s

Protection type:
  • Safe operator working environment
  • Protection of open pharmaceutical substances
  • Protection of booth surroundings

  • Efficiency 99,95% MPPS according to EN 1822 standard
  • ISO class 5 according to U.S.F.S. 209 E
  • GMP class A

Standard options:
  • Microprocessor controlled parameters from control panel
  • Work hours counter
  • Sound & visual alarm
  • Fluo or LED lamp 500 lux
  • PVC curtain
  • Panic button
  • Replaceable HEPA filter

Other options:
  • Air cooler
  • Pressure gauge or pressure sensor
  • Bactericide UV sterilization light
  • UV light hours counter
  • Other dimensions on request
  • Workspace made out of stainless steel (AISI 316)
Air flow scheme
