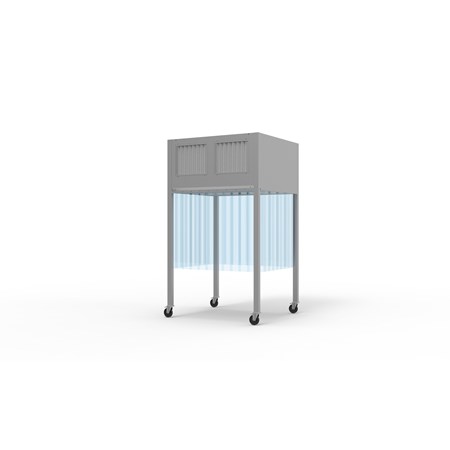

Containment booths

Booth takes the air through prefilter G4 that holds larger particles. The fan directs air to the HEPA absolute filters. Laminar air flows into the workspace and provides air cleanliness of high degree. Device is self-standing.
  • Housing made out of satin stainless steel AISI 304/316L
  • Vertical laminar air flow
  • Air flow velocity: 0.25-0.45 m/s

Protection type:
  • Safe operator working environment
  • Protection of open pharmaceutical substances

  • Efficiency 99,95% MPPS according to EN 1822 standard
  • ISO class 5 according to U.S.F.S. 209 E
  • GMP class A

Standard options:
  • Microprocessor controlled parameters from control panel
  • Work hours counter
  • Sound & visual alarm
  • Fluo or LED lamp 500 lux
  • PVC curtain
  • Replaceable HEPA filter

Other options:
  • Pressure gauge or pressure sensor
  • Bactericide UV sterilization light
  • UV light hours counter
  • Other dimensions on request
  • Workspace made out of stainless steel (AISI 316)
Air flow scheme
